TNC-plug / TNC-jack

TNC-plug and TNC-jack
connectors with screw thread lock

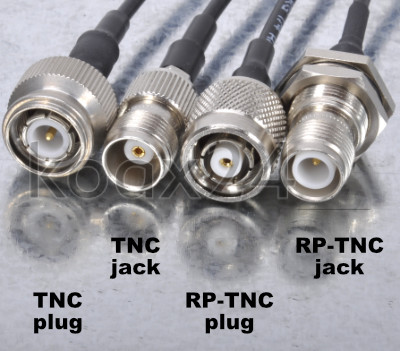

TNC jack and TNC plug

Information about TNC connectors:
The design of the TNC connector is similar to the BNC connector.
In contrast to the BNC connector, the locking mechanism is designed with a thread.
It is recommended for frequencies up to 10 GHz (or more, depending on the manufacturer) and has a characteristic impedance of 50 or 75 ohms. Thanks to the internal seal, TNC can also be used for outdoor applications.

These connectors are available for almost all cable types in our programme.

Cable assembly with TNC plugs/TNC sockets:

TNC- connectores in a large selection:

Cable configurator

TNC connectors in our shop
ConnectorsTypArticleassembly instructionDatasheet
TNC jack, straight, crimp/crimp50 Ω020112466 KB434 KB
TNC jack, straight, crimp/crimp50 Ω02041751 KB90 KB
TNC jack, straight, crimp/crimp50 Ω020416 41 KB 29 KB
TNC bulkhead jack, straight, crimp/crimp50 Ω02093367 KB30 KB
TNC bulkhead jack, 4-flange, straight, crimp/crimp50 Ω020395110 KB81 KB
TNC bulkhead jack, 4-flange, straight, crimp/crimp50 Ω02053447 KB36 KB
TNC bulkhead jack, straight, crimp/crimp50 Ω02011462 KB57 KB
TNC bulkhead jack, straight, crimp/crimp50 Ω020261 67 KB 55 KB
TNC bulkhead jack, straight, crimp/crimp50 Ω02026462 KB53 KB
TNC bulkhead jack, straight, solder/solder50 Ω020470  39 KB
TNC angle plug 90°, solder/crimp50 Ω02036748 KB42 KB
TNC plug, angled 90°, solder/crimp50 Ω020110445 KB41 KB
TNC angle plug 90°, solder/crimp50 Ω020313445 KB44 KB
TNC plug, straight, crimp/crimp50 Ω020109442 KB39 KB
TNC plug, straight, crimp/crimp50 Ω02018952 KB49 KB
TNC plug, straight, crimp/crimp50 Ω020218446 KB43 KB
TNC plug, straight, crimp/crimp50 Ω020444 77 KB36 KB
TNC plug, straight, crimp/crimp50 Ω02045352 KB43 KB
TNC plug, straight, crimp/crimp50 Ω020525 52 KB40 KB
TNC plug, straight, crimp/crimp50 Ω02058355 KB57 KB
TNC plug, straight, solder/crimp50 Ω020197419 KB179 KB
TNC plug, straight, solder/screw50 Ω020301 75 KB294 KB
TNC plug, straight, solder/screw50 Ω020620446 KB40 KB
TNC jack, straight, crimp/crimp50 Ω020584 77 KB 33 KB
TNC bulkhead jack, straight, crimp/crimp50 Ω020797 48 KB 93 KB
TNC angle plug 90°, solder/crimp50 Ω020718313 KB58 KB

Cable assembly with TNC plug and TNC socket!

In addition, all our cables are equipped with a kink protection in black as standard to ensure that you can enjoy your cables for a long time. The kink protection is optionally available in 10 different colours, e.g. yellow, green, blue, red, etc. – for a better overview!

Ready-made cables made to measure! Find here: Cable configurator

Tip: Instead of doing it yourself – simply have us assemble the cables for you!
