Aircell® 7
Aircell® 7 / 50Ω – coaxial cable
Low Loss cable – double shielded
The Aircell 7 LowLoss cable is suitable for a frequency range up to 6 GHz. The RF line is flexible and recommended for wireless communication applications. The good attenuation values are achieved by a low-loss PE dielectric with an air content of more than 70%, as well as by the inner conductor and the double shielding from pure copper.
Application fields: News and wireless communication technology: low attenuation and stray radiation resistant.
Aircell® 7LowLoss: (Sheath colour: black) 50 Ω;
Temperature range from -55°C(fixed installation) -40°C (mobile use) up to +85°C
Alternative cable is the HIGHFLEXX 7 coaxial cable
| Material | Diameter | |
| Inner conductor | Copper stranded wire | 19x 0,37 mm / 1,85 mm |
| Dielectric | Foamed PE | 5,0 |
| Cable screen | Copper foil , Copper braiding | 5,70 mm |
| Cable sheath | PVC, black | 7,30 mm |
Available plug connectors:
| Typical attenuation values for the Aircell 7: | |
| 50 MHz | 4,5 dB/100 m |
| 100 MHz | 6,3 dB/100 m |
| 1800 MHz | 30,0 dB/100 m |
| 5000 MHz | 57,0 dB/100 m |
| Description | Size | Datasheet | |
| Aircell® 7 cable – Datasheet |  PDF | 625 kB | Link |
Double Shielded

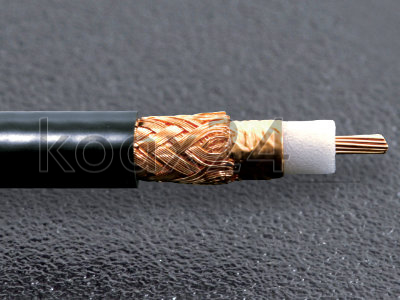

Structure of a double shielded coaxial cable:
1 = inner conductor (Solid or litz wire (1b))
2 = dielectric / insulation
3a = braided shield / film
3b = braided shield / film
4 = outer sheath
Double shelded coaxial cable – characteristic impedance 50R
